Two replaceable elastomer sleeves that forms the bore of the valve Bi-directional sealing Full bore unrestricted flow No groove or cavity in the bore of the valve where slurry can collect The spindle is protected against slurry splatter, utilising a spindle cover above the handwheel and bellows below
Integral replaceable polyurethane cartridge that is mechanically retained within a two-piece body Bi-directional sealing No groove or cavity in the bore of the valve where slurry can collect Full bore unrestricted flow Fully moulded and reinforced body seal. The rigidity of the seal prevents creep of the seal when the...
QB Knife Gate Valve specs (uni-directional sealing, one piece wafer body, full bore, replaceable EPDM seal, protected rising spindle)
Size Range: DN50 - DN400 Pressure Rating:DN50 - DN200 — 16 barDN250 - DN400 — 10 bar Flange Connection: Wafer / semi lugged Body Material: SG Iron BS 4200/12 Gate Material: 304 (316 & 2205 available on request) Rubber Lining: EPDM (other grades available on request) Yoke Material: FBE coated...
Bi-directional sealing
No groove or cavity in the bore of the knife gate valve where slurry can collect
Fully moulded and reinforced body seal. The rigidity of the seal prevents creep of the seal when the knife gate valve is opened or closed, reducing the torque to open and close the valve.
Precision machining of the stuffing box cavity that reduces the force required to seal the knife gate valve which reduces the opening and closing torques
Arched PTFE scrapers across the width of the blade
16 bar pressure rating for valves from DN50 to DN 200 and 10 bar for valves from DN 250 to DN 600
Full bore unrestricted flow
Self-cleaning flush-out corners that prevent deposit build-up in the sealing area

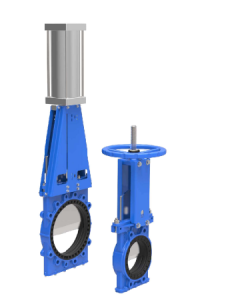

Integral replaceable polyurethane cartridge that is mechanically retained within a two-piece body
Bi-directional sealing
No groove or cavity in the bore of the knife gate valve where slurry can collect
Full bore unrestricted flow
Fully moulded and reinforced body seal. The rigidity of the seal prevents creep of the seal when the valve is opened or closed, reducing the torque to open and close the knife gate valve.
Precision machining of the stuffing box cavity that reduces the force required to seal the valve which reduces the opening and closing torques
PTFE scrapers across the width of the blade
16 bar pressure rating for valves from DN50 to DN 200 and 10 bar for knife gate valve from DN 250 to DN 400 and 8 bar for valves from DN 450 to DN 600
Self-cleaning flush-out corners that prevent deposit build-up in the sealing area
The spindle is protected against slurry splatter, utilising a spindle cover above the handwheel and bellows below

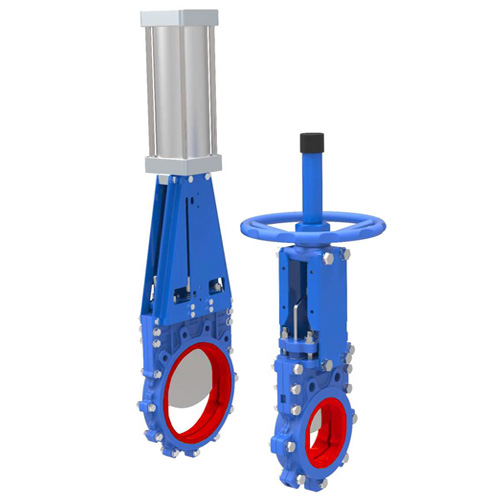

Two replaceable elastomer sleeves that forms the bore of the knife gate valve
Bi-directional sealing
Full bore unrestricted flow
No groove or cavity in the bore of the valve where slurry can collect
The spindle is protected against slurry splatter, utilising a spindle cover above the handwheel and bellows below
