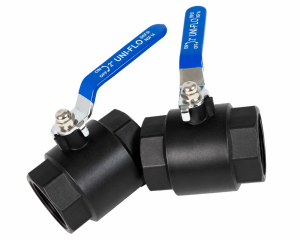

Specification Detail Pressure Rating 16 Bar Temperature Range 10C to 60C Body 30% Fibreglass Reinforced Polypropylene Body Ball Chrome Plated Steel Ball Seats PTFE Seats for Smooth Sealing Stem Seals Triple NBR O-Ring Stem Seals Stem Nickel Plated Steel Blowout-Proof Stem Lever Heavy Duty Chrome Plated Lever with Plastic Sleeve...
Feature Detail Temperature Range -30C to +120C Pressure Rating Up to 1600 kPa Body Corrosion-resistant polypropylene body (one-piece moulded design) Seats PTFE seats for superior sealing and reduced friction Ball Chrome-plated steel or brass ball for durability and smooth operation Stem Nickel-plated blowout-proof stem for enhanced safety Stem Seals Triple...
Feature Detail Application Compact valve mainly used to protect wastewater pumping stations, on water, sewage water and viscous fluids Sealing Rubber encapsulated ball to back-seat and prevent reverse flow Operation Silent closing, no water hammer Performance Good sealing, full bore flow, large flow, small resistance Head Loss 50% lower than...
Feature Detail Sizes 40mm (screwed), 50mm-600mm (flanged); larger sizes on request Operating Temperature -10C to +80C Pressure Rating PN16 Types Ball Check valve / Ball Check non-return valve Ball Material Steel core, Urethane or Rubber coated Body Material Cast iron, Epoxy coated
