Feature Detail Standards Designed to BS5153 standards Compliance Complies to SANS 1551-2 2007 specifications Gate EPDM encapsulated SG Iron gate for reliable sealing (NBR option available) Swing Arm High-strength Stainless Steel swing arm and hanger pin Counter Weight Option added on request Coating Durable 250 Micron FBE coating for exceptional...
Specification Detail Pressure Rating PN20 (20 bar) Body Epoxy powder coated ductile iron body for corrosion resistance Door Stainless steel door for strength and durability Seal EPDM seal for reliable, leak-tight performance Pin Stainless steel pin for secure operation Design Single door design for quick response and smooth flow Standard...
Feature Detail Standards Designed to BS5153 standards Function Prevents reverse flow and protects system components Flow Design Full bore design for minimal pressure loss Installation Suitable for horizontal and vertical installation Flanging Flanged to BS4504 PN10/16 (optional BS10 Table D/E) Face-to-Face In accordance with BS5153 Testing Tested to BS6755 standards...
Feature Detail Design Lightweight wafer-type design for easy installation Construction 304 stainless steel double door (dual disc) construction Seat Resilient seat for positive shut-off and backflow prevention Flow Low head loss for improved flow efficiency Durability Corrosion-resistant and durable design Pressure Rating 16 bar Size Range 50mm - 600mm
Feature Detail Application Compact valve mainly used to protect wastewater pumping stations, on water, sewage water and viscous fluids Sealing Rubber encapsulated ball to back-seat and prevent reverse flow Operation Silent closing, no water hammer Performance Good sealing, full bore flow, large flow, small resistance Head Loss 50% lower than...
Feature Detail Design Compact and extremely lightweight, suitable for mounting between a wide range of flanges Materials Available in steel or 316 stainless steel Seat Viton or EPDM seat for leak-proof sealing Design Standard API 6D Face-to-Face API 6D Testing API 598 Temperature (NBR) -10C to 80C Temperature (EPDM) -10C...
Feature Detail Design Compact wafer design, popular where space is a major factor in valve selection and pipeline design Closing Non-slam spring-assisted closing Applications Suitable for water, waste water, oil, weak acids and alkaline liquids etc. Sealing Tight closure via soft seat in EPDM or NBR Size Range 50mm -...
The Uni-Flow Double Door Check Valve is a compact wafer design and is a popular choice when space is a major factor in valve selection and pipeline design. The compact design features a non-slam spring-assisted closing and is suitable for water, wastewater, oil, weak acids alkaline liquids, etc. Tight closure is obtained by utilising a soft seat in either EPDM or NBR.
Available in sizes 50mm – 600mm
Cast Iron body with either 304 stainless steel or ductile iron chrome plated disc.
Thin Wafer Check Valves are compact and extremely lightweight and suitable for mounting between a wide range of flanges. Available in steel or 316 stainless steel the Thin Wafer Check has a Viton or EPDM seat for leak proof sealing.
Design and manufacture: API 6D
Face to face: API 6D
Testing according to : API 598
Suitable temperature: NBR: -10~-80°C
– EPDM: -10~-120°C
– VITON: -10~-150°C
Medium: Fresh water, sea water, waste water, food stuff, all kinds of oil, weak acid and alkaline liquid etc.
Uni-Flo Ball Check Valves are compact and mainly used to protect wastewater pumping stations. Mainly used on water, sewage water, and viscous fluids, the ball check valve consists of a rubber-encapsulated ball to backseal any reverse flow.
Silent closing, no water hammer
Good sealing
Full bore flow, large flow
Small resistance
Loss or water head is 50% lower than swing check valves
Installation: horizontal or vertical
More Info. (.pdf)
The Uni-Flo wafer swing check valve is an economical alternative to the traditional flanged swing check valve. The lightweight wafer-type valve consists of a 304 stainless steel disc, and on reverse flow will have a positive shutoff owing to the resilient seat.
Low Head Loss
Pressure rating – 16 Bar
Available in sizes 50mm – 600mm

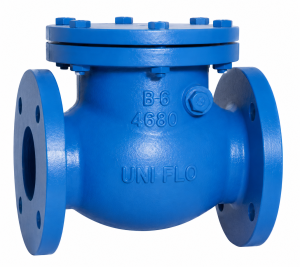

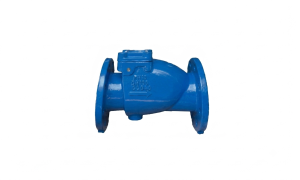

Uni-Flo Swing Check Valves are especially suited for the prevention of reverse flow. Designed to BS5153, the valve allows for full flow and can be installed in the horizontal or vertical position.
Flange dimensions conform to BS4504 PN10/16 – Can be supplied to suit BS10 Table D/E
Face to Face dimensions conform to BS5153
Testing in accordance with BS6755
On request, the valve can be supplied with external lever and counter weight (L.W.)
Pressure rating – 16 bar.
