Radiator Valves

Home » Radiator Valves

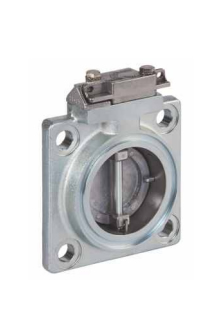

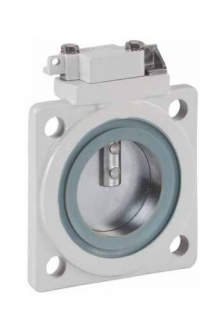

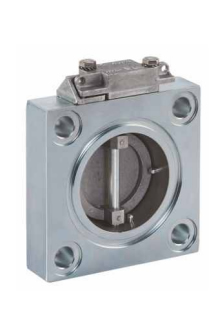

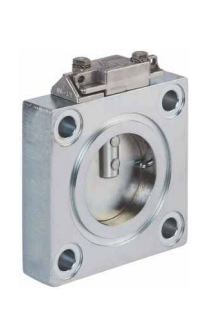

Size 80mm. Pad Lockable Type. Forged Steel Body Ref. Standard EN50216-81

FEATURES

Zero leakage for ‘O’ Ring sealing models (Series 213).
Maximum allowable leakage through flap less than 1cc/minute with transformer oil at 1kg/cm² for metal to metal contact models (Series 203, 204).
Forged steel body.
100% pressure testing for leakage through flap.
Strong and sturdy construction for maintenance free service.
Locking possible at both open and shut position.
Additional paint protection to any shade on request.
Optional valves for Off-shore application (C5M & CX category).
Extreme low temperatures (-60 C).
High Temperatures up to 180 C.

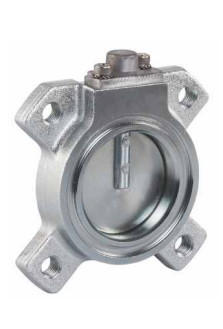

Bolt on Type With Aluminium Body, Zero Leakage Ref. Standard EN50216-8

FEATURES

Pressure die cast Aluminium body, flap, and operating handle
Aluminium flap with the “O” Ring ensures zero leakage when the valve is closed.
Optional M16 fixing screws.
Mounting gasket supplied with the valves.
Spring-loaded screws with three “O” Ring provides foolproof sealing from the shaft.
Very light and sturdy construction.
NBR “O” Ring is easily replaceable.

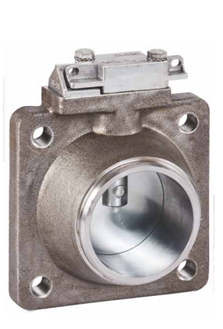

Size 80mm Weld-On Type Radiator Valve Pad Lockable, Forged Steel Body

FEATURES

Weld-on type Radiator Valve.
Forged Steel Body for high durability.
100% Leakage Testing at 3kg/cm for zero leakage valves.
100% tested to withstand full vacuum for zero leakage valves.
Maximum allowable leakage through flap less than 1cc/minute with transformer oil at 1kg/cm² for Series 210.
Double sealing on the shaft to protect against leakage during the lifetime of the transformer.
Valve supplied with mounting gasket or ‘O’ Ring.
