Major Valves And Engineering Is In Partnership With Several Valve Manufacturers And Distributors within and outside
South Africa to bring our customers regular and custom valves. We also supply depending on client specifications and requirements.
1
2
3

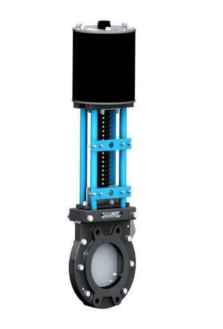

DFC’s Insamcor range of lugged wafer ductile iron and stainless steel bi-directional knife gate valves feature a unique moulded body seal without seat pockets or cavities, providing trouble-free operation in slurry applications. It features a cast iron or stainless steel body and is either FBE-coated or soft rubber lined for the cast iron option, with an added option for wear cones.
DFC’s Insamcor range of high-pressure ductile iron mono-flanged knife gate valves features a unique moulded body seal, including both transverse and stuffing box sealing to the atmosphere. The moulded seal ensures no seat pockets or cavities, providing trouble-free operation in high-pressure applications. The cast iron body is either FBE coated or soft rubber lined with an added option of wear cones.

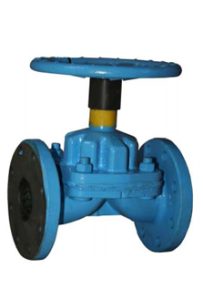

This is a low-maintenance product with field-replaceable heavy-duty sleeves and gate. With a wide choice of materials, methods of operation, and body end connections, the Saunders straight-through type KB diaphragm valves meet the needs of most industrial applications. In addition, its extended life, reliability, safety, ease of use, and simple basic design, result in low maintenance for minimum running costs. As a result, the Saunders Type KB diaphragm valves (DN15-DN350) are cost-effective and offer a unique range of features.
This is a low-maintenance product with field-replaceable heavy-duty sleeves and a gate. The Saunders Weir Type A valve has been developed to handle more fluids and gasses than any other valve. A wide choice of materials, methods of operation, and body end connections will satisfy the needs of most industrial applications. Its extended life, reliability, safety, ease of use, and essentially simple design, result in low maintenance for minimum running costs.
MVE Industries is a valve and pump supplier that manufactures a wide range of valves like gate valves, globe valves, check valves, cryogenic valves, bellow sealed valves, ball valves, butterfly valves and Y-Type strainer valves from Class #150 to Class #2500. We supply valves applicable to marine, petrochemical, oil and gas, mining and smelter, and chemical manufacturing industries.
MVE butterfly valves are quarter-turn valves, i.e., just a quarter turn takes the valve from fully open to a fully closed position. They are simple in design, effortless to use and allow quick opening and closure. They are manufactured to API 609 CAT-A, BS EN 593 and ISO 13095 standards.
CLASS: #150 #2500
DESIGN TYPE:
These valves are suitable for use with freshwater, sewage, seawater, air, food, medicine, oils, acids, alkalis, salt etc. They are 16-bar rated and suitable for the following temperatures:
Liner options
Flange alignment
These valves are suitable for freshwater, sewage, seawater, air, food, medicine, oils, acids, alkalis, salts, etc. They are 16-bar rated and suitable for the following temperatures:
Liner options
Flange alignment
Working pressure:
The Uni-Flow Double Door Check Valve is a compact wafer design and is a popular choice when space is a major factor in valve selection and pipeline design. The compact design features a non-slam spring-assisted closing and is suitable for water, waste water, oil, weak acids and alkaline liquids etc. Tight closure is obtained by utilising a soft seat in either EPDM or NBR.
Available in sizes 50mm 600mm
Cast Iron body with either 304 stainless steel or ductile iron chrome plated disc.

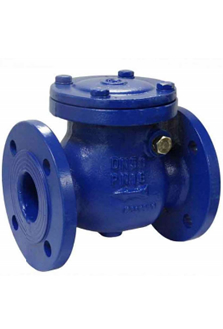

Swing Check Valves are especially suited for the prevention of reverse flow. Designed to BS5153, the valve allows for full flow and can be installed in the horizontal or vertical position.
Flange dimensions conform to BS4504 PN10/16 Can be supplied to suit BS10 Table D/E
Face to Face dimensions conform to BS5153 Testing in accordance with BS6755
On request, the valve can be supplied with external lever and counter weight (L.W.)
Pressure rating 16 bar.
This valve is designed and manufactured according to BS3464
High Pressure & Temperature
Working pressure: 1.0MPa
Shell test pressure: 1.5MPa
Working Temperature: <100°C
Media: Water, oil
MARINE CAST STEEL 10K GLOBE CHECK VALVE (SDNR)
Manufactured in accordance to JIS F7400 Flange as per JIS B2220 – 10K
Notes: PTFE seats and graphite body seal and packing
body seal and packing

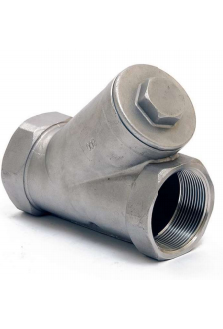

Type: Class 150 stainless steel CF8M y-strainer
Sizes: Available in 1″ – 6″ from stock
Each coupling / clamp consists of two identical curved housing, gaskets, nuts and bolts.
The housing are manufactured from the Ductile Iron Casting, the Gasket is from Nitrile / Natural Rubber and the Nuts and Bolts are made from steel as per 4.6 Grade.
The head of the bolt is oval necked to fit square shaped holes in the housing.
The Coupler castings are Painted / Galvanized.
