Description

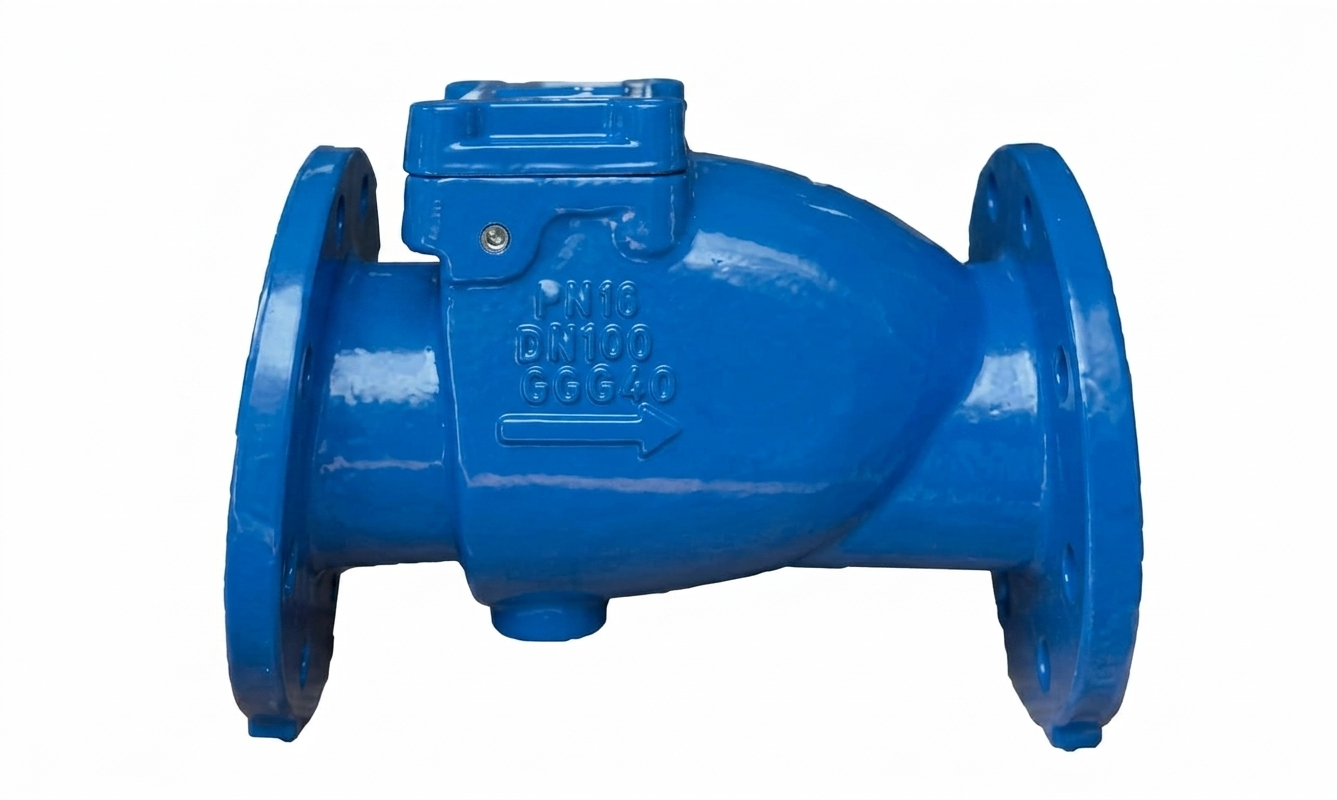

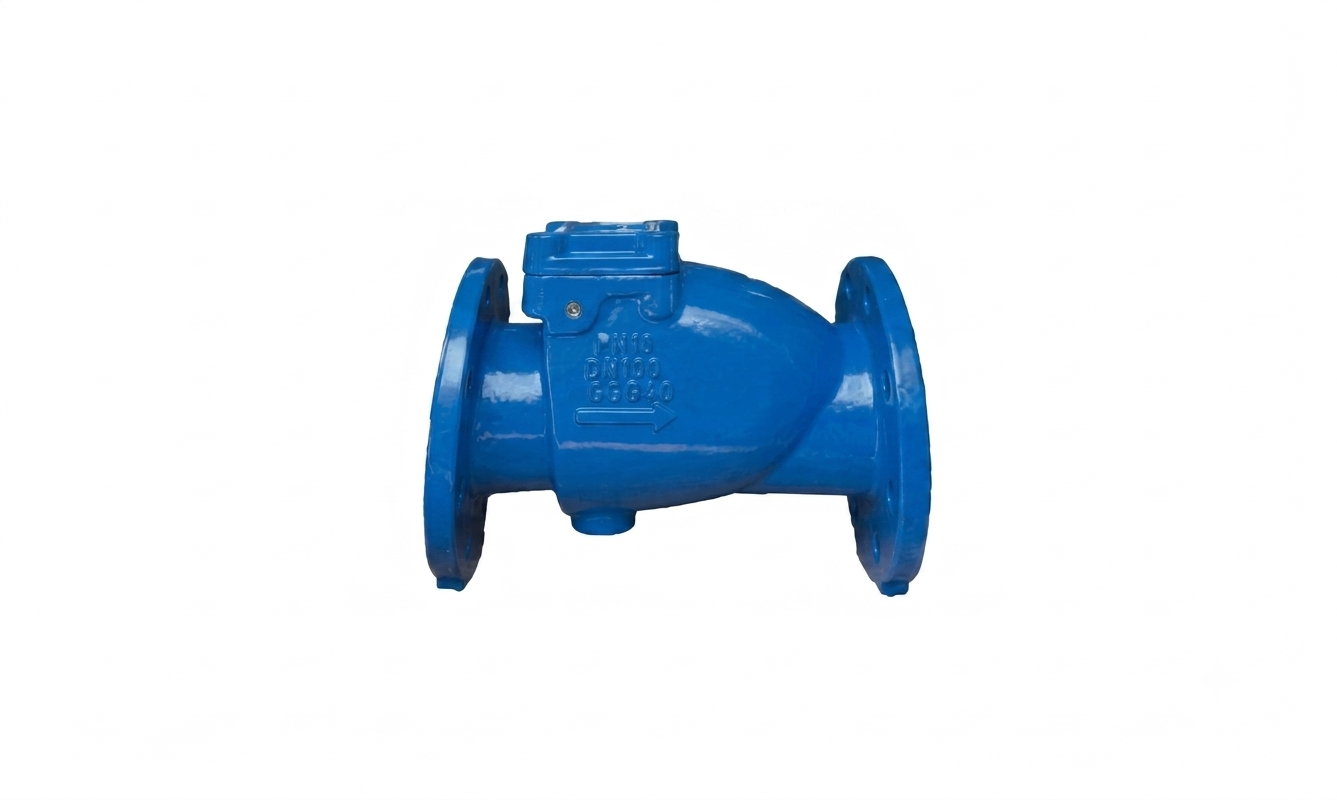

Our Flanged Swing Check Valve PN16 is designed for efficient backflow prevention and smooth flow control in water and industrial piping systems. Built with a robust SG Iron body coated with Fusion Bonded Epoxy (FBE – 250 Micron) for superior corrosion resistance, this valve provides long-lasting reliability and secure flanged installation.
Engineered for optimal sealing and durability, the valve features an EPDM encapsulated SG Iron gate paired with a high-grade Stainless Steel swing arm and hanger pin. Designed to comply with recognized international standards, it prevents fluid reversal while maintaining low head loss during operation.
Size Range & Pressure Rating
-
Size Range: DN50 to DN300
-
Pressure Rating: PN16 (16 Bar / 1600 kPa)
Construction & Materials
-
Body Material: SG Iron – Grd 420/12 FBE Coated
-
Gate / Disc Material: EPDM Encapsulated SG Iron (NBR Encapsulated available on request)
-
Bonnet Material: SG Iron – Grd 420/12
-
Swing Arm Material: Stainless Steel – Grd 304
-
Hanger Pin Material: Stainless Steel – Grd 410
-
Split Pin Material: Stainless Steel – Grd 304
-
Cap Screw Material: HT Steel – Grd 8.8
-
O-Ring / Seals: NBR / EPDM
-
Drain Plug: Brass
-
Coating: Fusion Bonded Epoxy (FBE) – 250 Micron (Signal Blue)
Key Features
-
Designed to BS5153 standards
-
Complies to SANS 1551-2 2007 specifications
-
EPDM encapsulated SG Iron gate for reliable sealing (NBR option available)
-
High-strength Stainless Steel swing arm and hanger pin
-
Counter Weight option added on request
-
Durable 250 Micron FBE coating for exceptional exterior and interior protection
Applications
Ideal for water distribution networks, wastewater treatment, industrial fluid processing, pumping stations, and general pipeline installations requiring dependable backflow prevention under PN16 operating conditions.
