Description

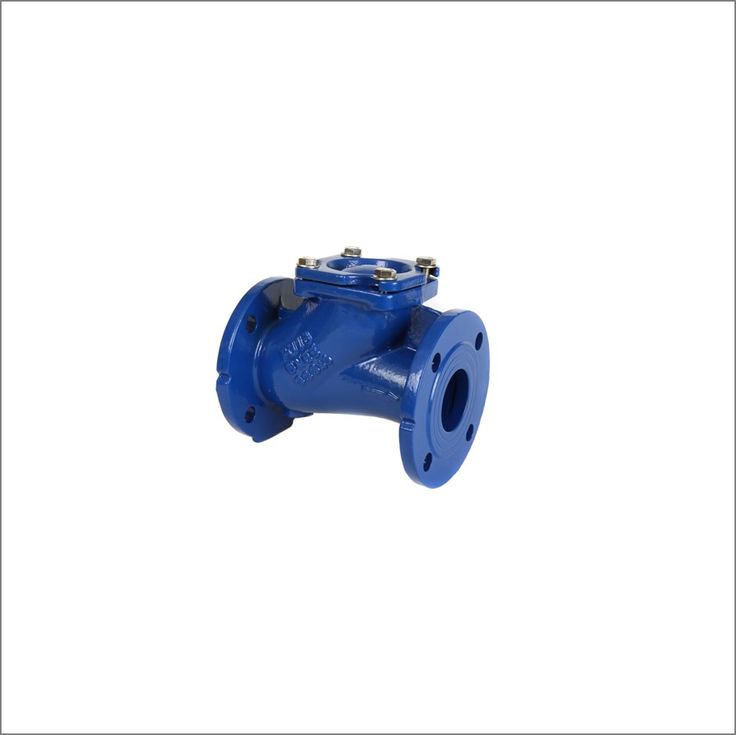

The Ball Check Valve is designed to provide reliable, maintenance-friendly backflow prevention in water, wastewater, and general industrial applications. Constructed from durable cast iron with an epoxy coating, the valve offers excellent corrosion resistance and long service life in demanding environments.
Featuring a simple yet effective ball-type mechanism, the valve ensures automatic non-return operation, allowing flow in one direction while preventing reverse flow. The ball, manufactured with a steel core and coated in urethane or rubber, provides a tight seal, reduces wear, and enhances operational efficiency even in systems with solids or viscous media.
Suitable for both screwed and flanged connections, this valve is designed to perform efficiently across a range of installations. With a pressure rating of PN16 and an operating temperature range of -10°C to +80°C, it delivers consistent, dependable performance with minimal maintenance requirements.
Key Features & Construction
Sizes : 40mm (screwed)
50mm- 600mm (flanged
Larger sizes on request
OPERATING TEMPERATURES: -10˚C to +80˚C.
PRESSURE RATING: PN16
TYPES: Ball Check valve.
Ball Check non-return valve.
BALL MATERIAL: Steel core, Urethane or Rubber coated.
Body material: Cast iron Epoxy Coated
