Description

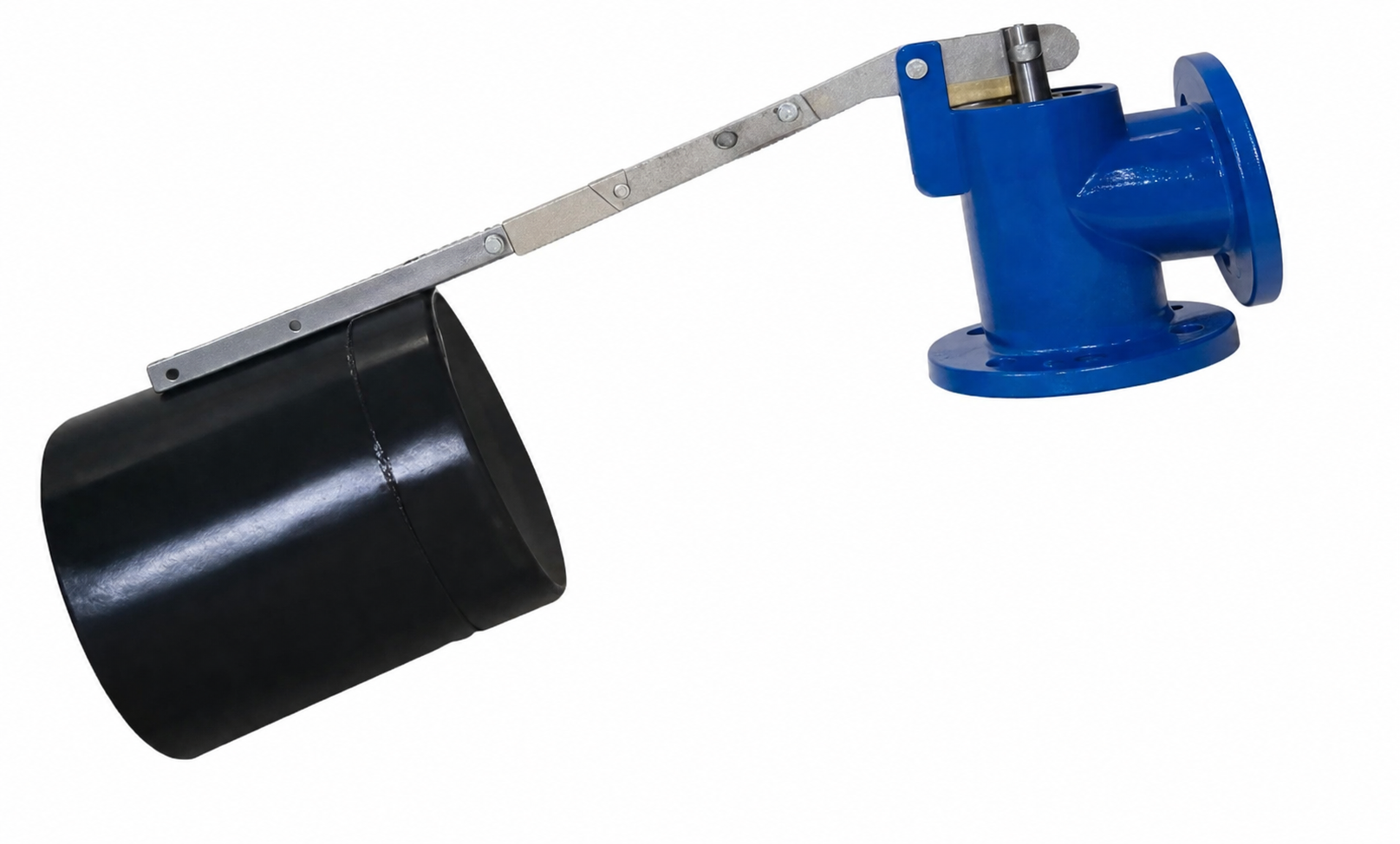

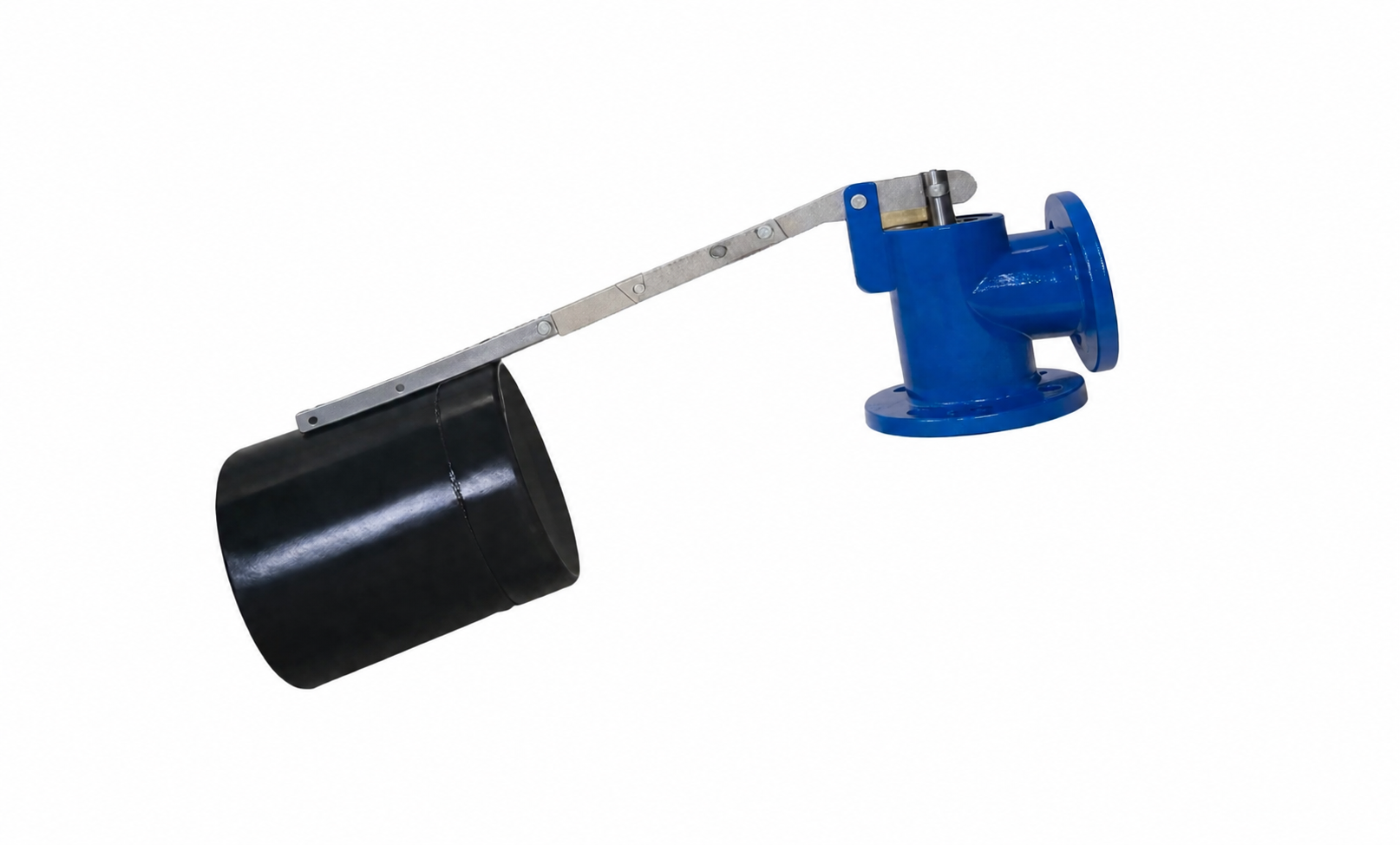

The Equilibrium Float Valve PN16 is locally manufactured to provide efficient water level control in storage tanks and reservoirs. Designed with a large orifice to allow for high flow rates, it ensures rapid and reliable tank filling while preventing overflow.
Engineered for long service life and simple upkeep, this valve features an adjustable shut-off level to suit custom tank requirements. Its robust construction utilizes quality metals and protective coatings to withstand continuous immersion and operation.
Size Range & Pressure Rating
Size Range: DN50 to DN150
Pressure Rating: PN16
Construction & Materials
Body: SG Iron FBE Coated
Gate: SG Iron EPDM/NBR Encapsulated
Spindle & Arm: Stainless Steel – Grd410
Float: Fibre Glass Polyurethane
Top Plug & Piston: Brass, LG2
Bottom Seat: Brass, LG2
O-Ring: NBR
Key Features
• Locally manufactured for quality assurance and fast availability
• Large orifice design allows for high flow capacity (up to 40 l/s at 2m/s velocity)
• Easily maintainable design for straightforward servicing
• Adjustable shut-off level to customize water line height
• Durable fiberglass polyurethane float for reliable buoyancy
Applications
Ideal for automatic water level regulation in municipal storage tanks, agricultural reservoirs, commercial water systems, and industrial tanks.
