Description

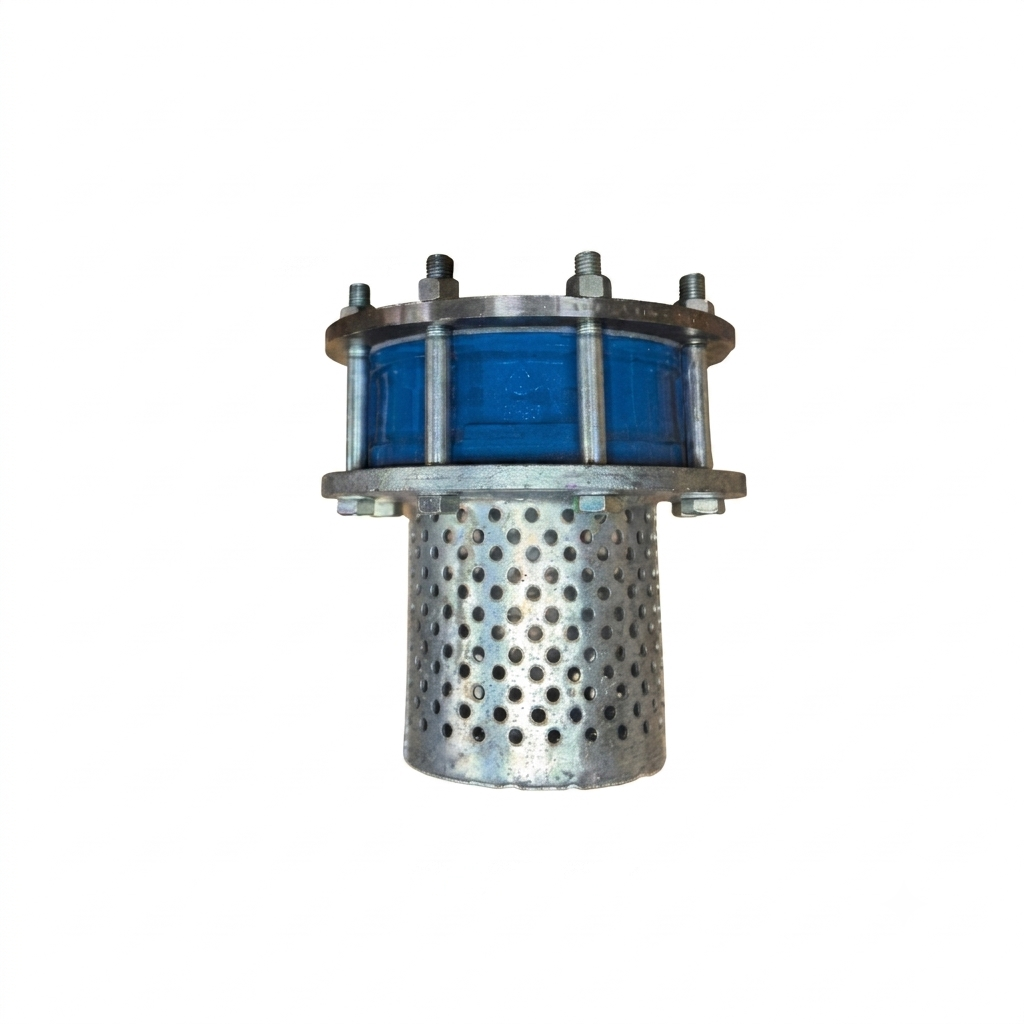

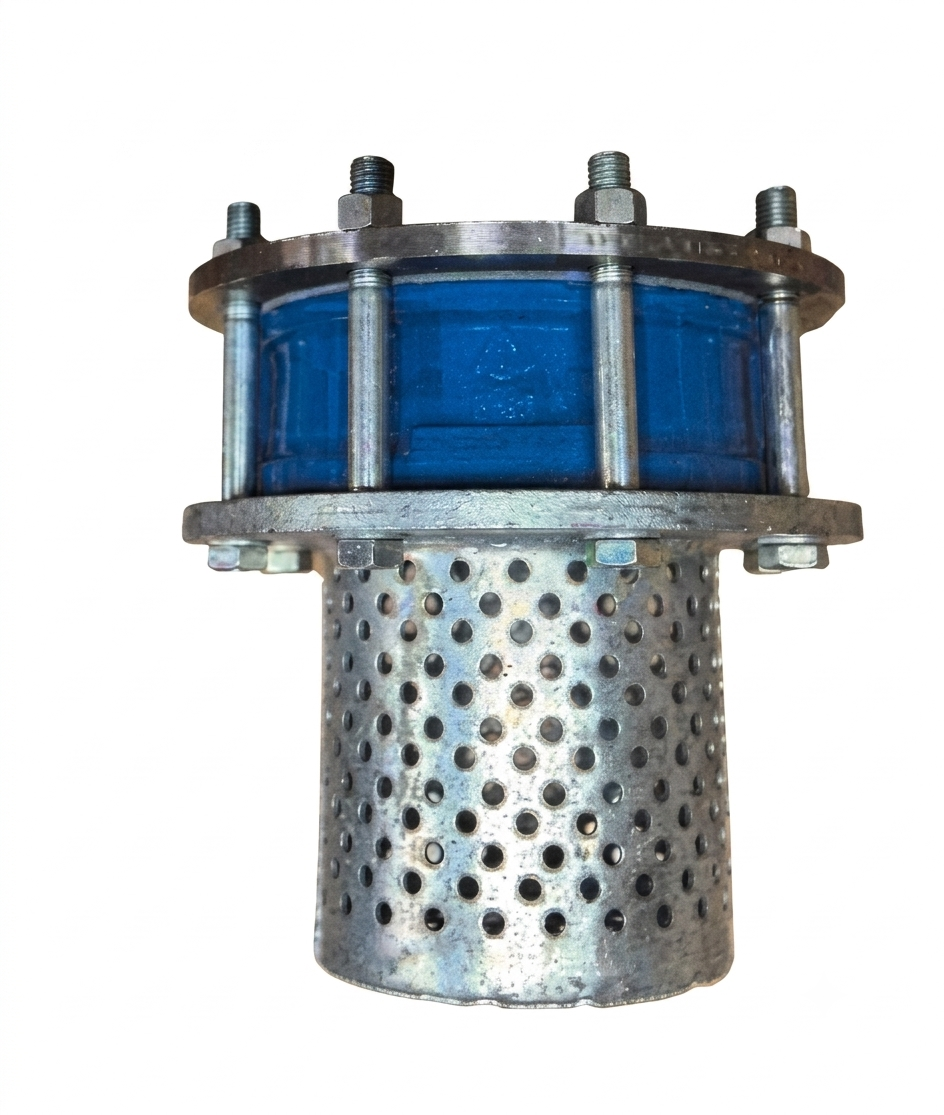

The Flanged Foot Valve is designed for reliable flow control and pump protection in raw water pumping applications. Built with a combination of a wafer non-return valve and a heavy-duty galvanised steel basket, this valve maintains pump prime and prevents debris from entering the suction line.
Engineered for durability in demanding environments, the valve is suitable for use in open water sources like rivers and dams. The basket features 8mm diameter perforations to ensure an optimal balance between maximum flow intake and effective filtration of large debris.
Size Range
Size Range: DN80 to DN500 (Screwed flange on request for sizes DN50, DN80, DN100, DN150)
Construction & Materials
Valve Body & Discs: Cast Iron Body with Nickel-plated discs OR Cast Iron Body with Stainless Steel discs
Basket Material: Galvanised Steel
Perforations: 8mm Diameter
Key Features
• Combination of a wafer non-return valve and galvanised steel basket
• Optional Cast Iron Body with Nickel-plated discs or Stainless Steel discs
• 8mm diameter perforations on basket for optimal filtration
• Screwed flange available on request for DN50, DN80, DN100, and DN150
• Heavy-duty design built for continuous pumping operations
Applications
For use in pumping applications, particularly suitable for raw water extraction in rivers, dams, agricultural irrigation, and industrial water systems.
