Description

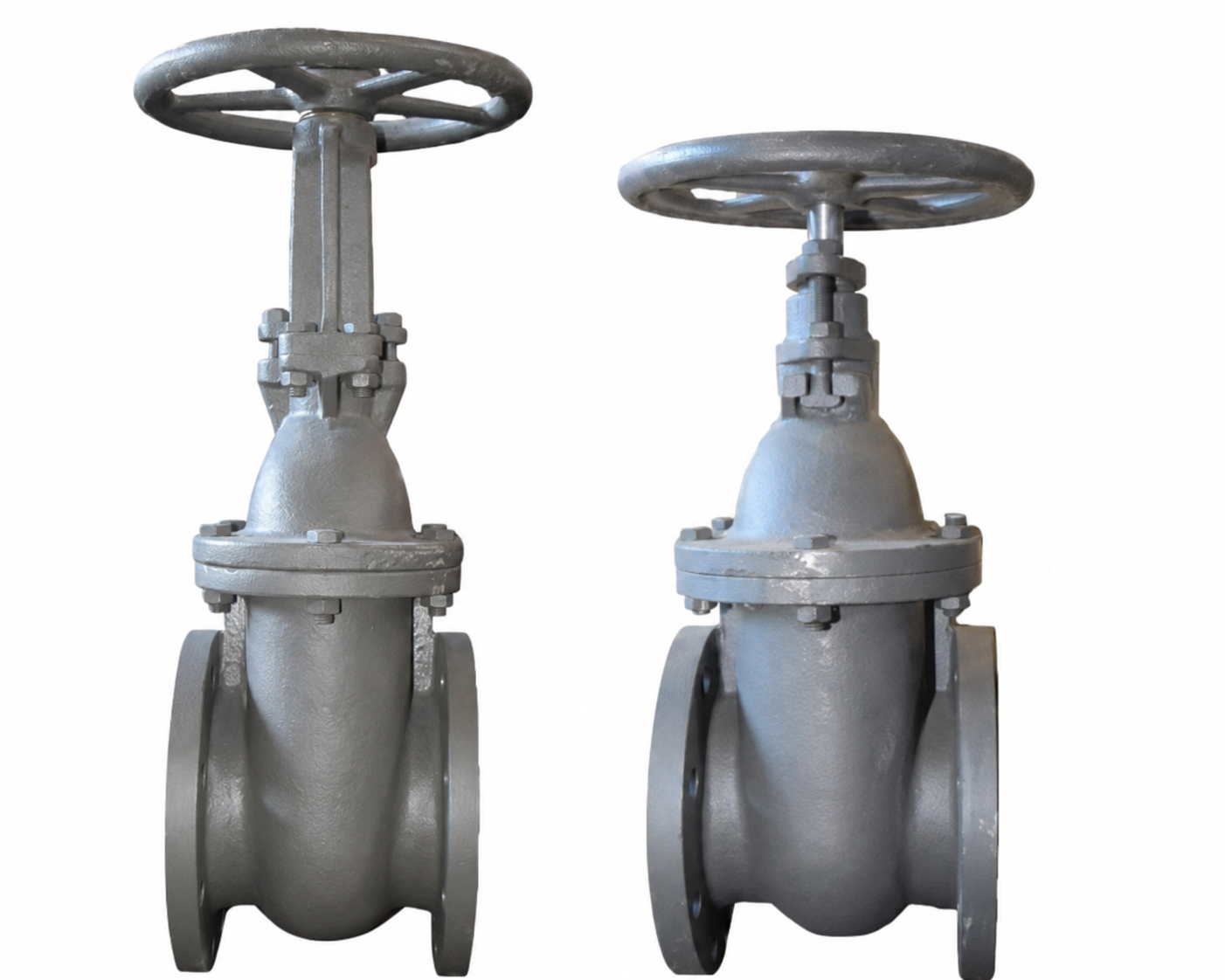

Industrial Pattern Wedge Gate Valves
Major Valves supplies robust industrial gate valves designed for reliable isolation and long service life across demanding applications. Manufactured with high-quality SG iron and precision-engineered internal components, these valves deliver dependable performance under varying pressure and temperature conditions.
Built in accordance with BS3464 face-to-face standards, these valves are available in both rising spindle and non-rising spindle configurations, offering flexibility for different installation requirements. With a working temperature range of -15°C to 120°C, they are suitable for a wide range of industrial systems.
Each unit is constructed using premium materials, including a stainless steel spindle, graphite stem packing, and a brass body seat ring, ensuring durability, corrosion resistance, and effective sealing. The cast iron gate with brass sealing ring enhances shut-off performance, while the NBR bonnet gasket provides secure sealing under pressure.
Available in DN50 to DN300 sizes, these valves are drilled to BS10 or Table D standards for easy compatibility with existing pipeline systems. The SG iron handwheel (Grade 420/12) ensures smooth and reliable operation.
Key Features:
- Robust SG iron construction (Grade 420/12)
- BS3464 face-to-face compliance
- Rising or non-rising spindle options
- Temperature range: -15°C to 120°C
- Sizes: DN50 to DN300
- Flange drilling: BS10 / Table D
- Corrosion-resistant internal components
- Reliable sealing and long service life
