Description

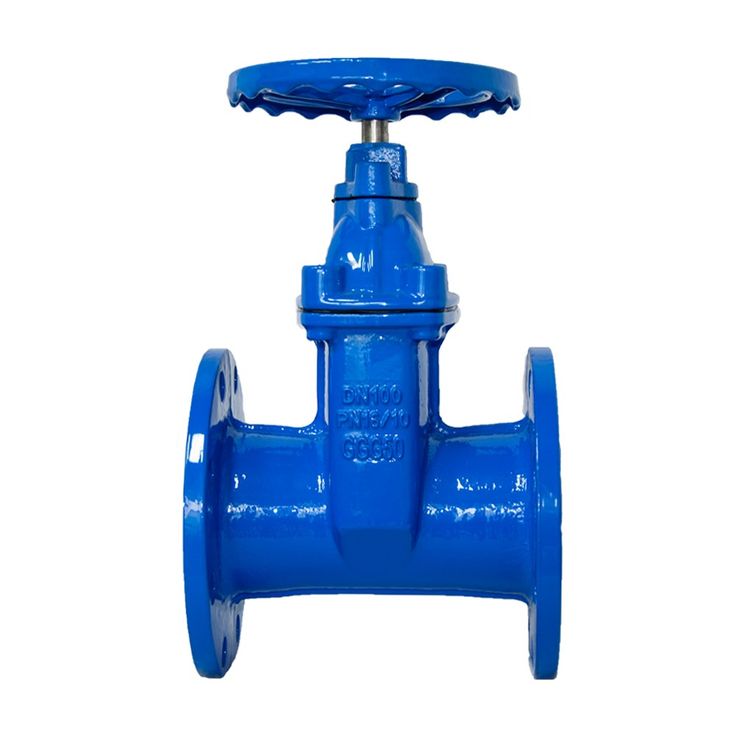

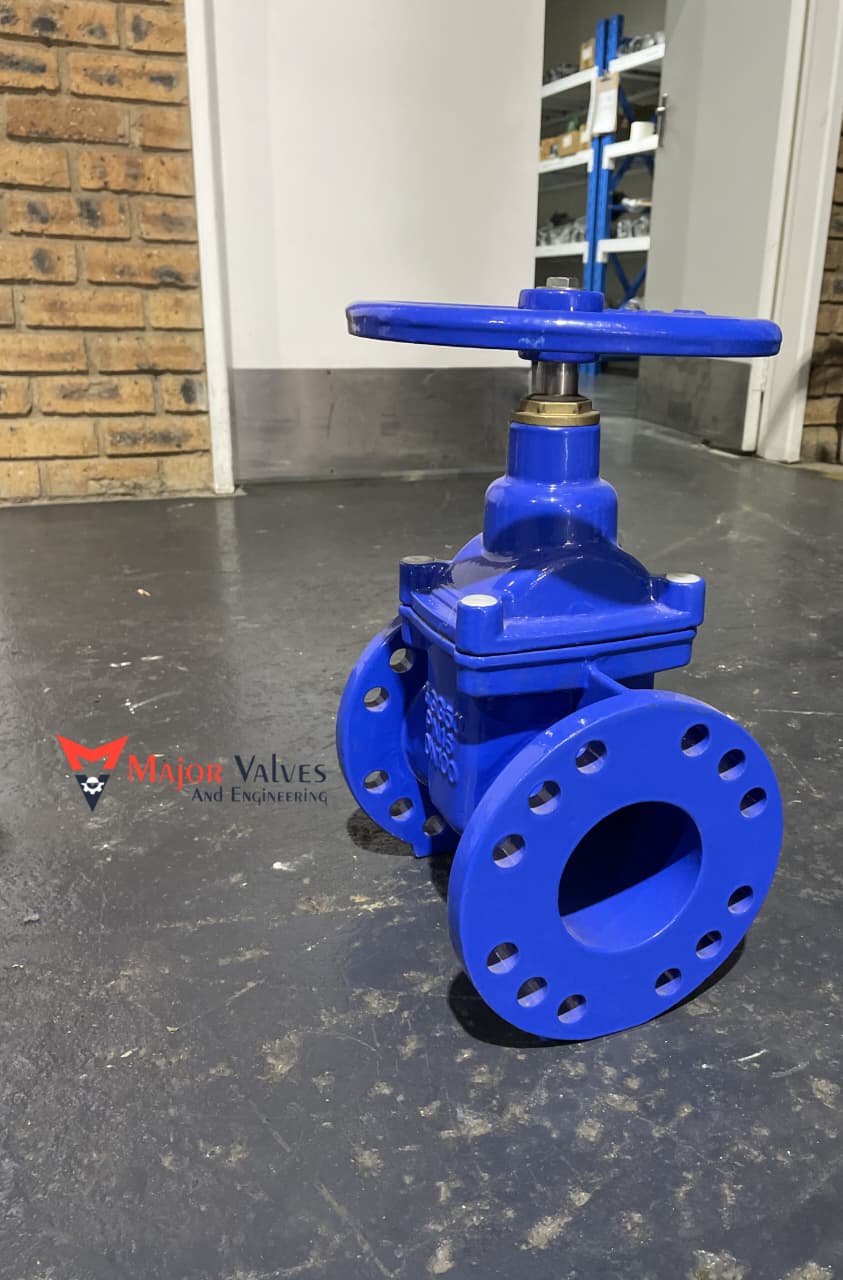

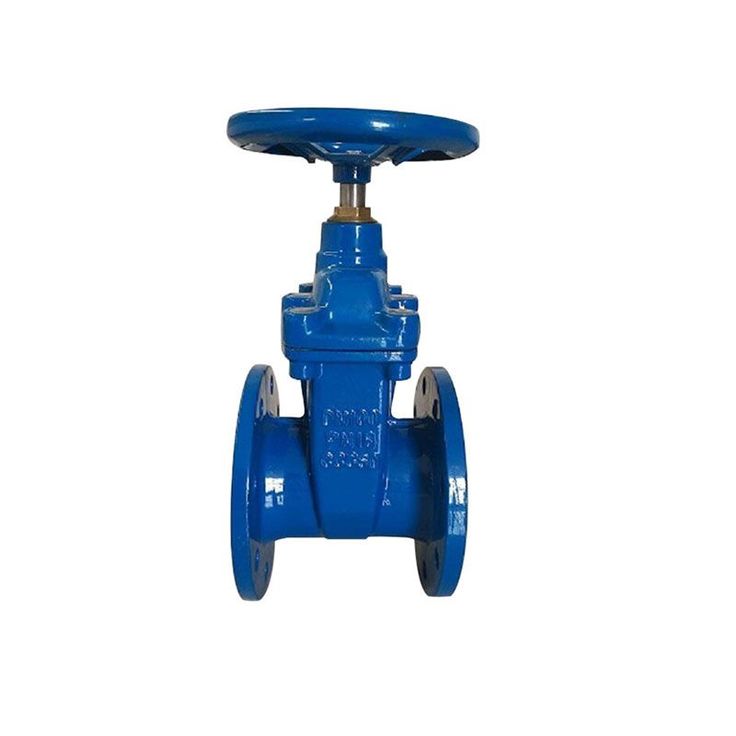

The Resilient Seal Gate Valve (PN16) is designed for reliable isolation in water and general utility applications. Featuring a robust SG iron body and a fully encapsulated resilient gate, the valve ensures tight shut off, corrosion resistance, and long service life. It is suitable for above or below ground installations and can be supplied with either a non rising or rising spindle configuration.
Key Features & Construction
Spindle
664 non-rising spindle (rising spindle on request)
Gate
SG iron, EPDM encapsulated (NBR encapsulated on request)
Operation
Handwheel / Gearbox
Closing
Right hand or left hand closing
Drilling
BS4504, SANS 1123, or blank as required
Coating
Fusion bonded epoxy / Epoxy coated
Pressure Rating
PN16
Body & Bonnet
SG iron
